100W MC PCB LENSE MODEL

449.0 INR/Piece

Get a Price/Quote

Product Details:

Impedance 100 Watt (w)
Board Type Rigid
Silkscreen White
Voltage Endurance 100 Watt (W)
Insulation Resistance NA
Flame Resistance Level NA
Soldermask White
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

100W MC PCB LENSE MODEL Price And Quantity

Minimum Order Quantity 50 Piece
Price 449.0 INR/Piece

100W MC PCB LENSE MODEL Product Specifications

Hole Size 4.05 Millimeter (mm)
Conductor NA
Operating Temperature 6500 Kelvin (K)
Min. Line Width 143 Millimeter (mm)
Rated Voltage 100 Watt (W)
Soldermask White
Cable Type NA
Test Other
Product Type 100W STREET LIGHT MC PCB LENSE MODEL
Min. Line Spacing 212 Millimeter (mm)
Sensor Switch NA
Surface Finish Other
Display Type LED
Board Thickness 1.5 Millimeter (mm)
Copper Thickness 1.5 Millimeter (mm)
Phase NA
Material ALUMINIUM
Impedance 100 Watt (w)
Usage & Applications STREET LIGHT
Warranty NA
Board Type Rigid
Color White
Electrical Components NA
Insulation Resistance NA
Features USING IN STREET LIGHT WITH LENSE MODEL MC PCB
Voltage Endurance 100 Watt (W)
Flame Resistance Level NA
Base Material Alumunium
Panel Size 143*212MM
Silkscreen White
Power Rating NA

100W MC PCB LENSE MODEL Trade Information

Delivery Time 7 Days

Product Description

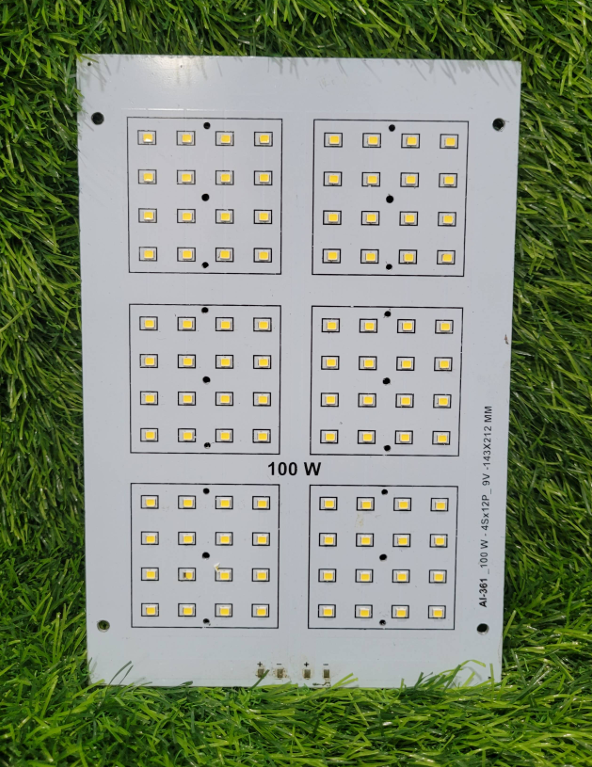

provided, you are looking at a high-power LED Metal Core Printed Circuit Board (MCPCB), typically used for industrial lighting like floodlights or street lights.

Power Rating: 100 Watts (100W).
LED Configuration: 4Sx12P. This means the circuit is arranged with 4 LEDs in series and 12 such strings in parallel.
Voltage Requirement: 9V. This is the nominal operating voltage for the board.
Physical Dimensions: 143 x 212 mm.
Model Number: AI-361.
LED Count: There are 6 modules, each containing 16 LEDs, for a total of 96 LEDs.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'LED PCB' category

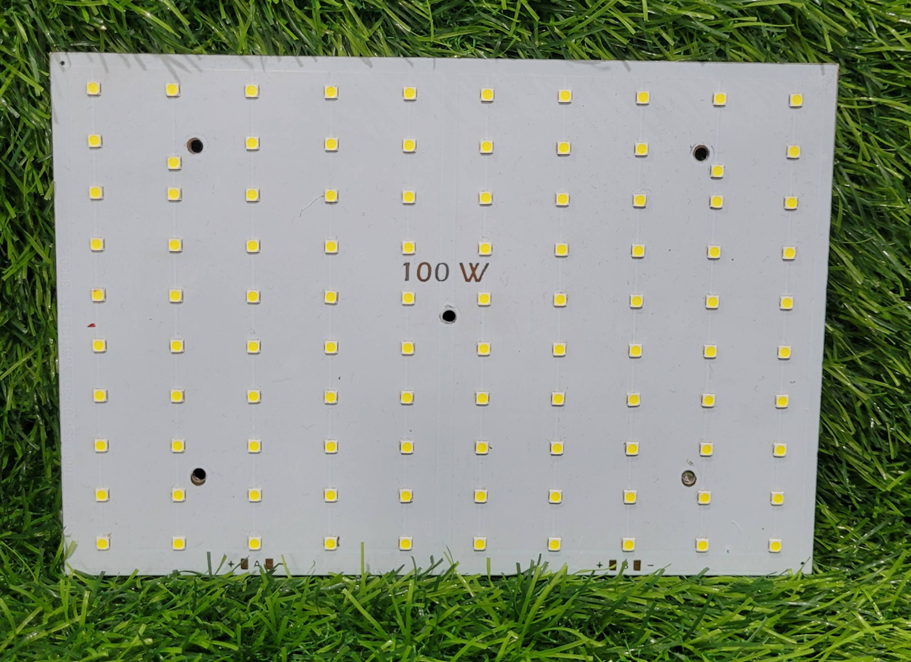

100W MC PCB Price : 399.0 INR/Piece Minimum Order Quantity : 50 Color : White Base Material : Alumunium Warranty : NA Product Type : MC PCB Voltage Endurance : 100 Watt (W) Copper Thickness : 1.5 Millimeter (mm) Silkscreen : White Board Thickness : 1.5 Millimeter (mm) Soldermask : White Test : Other Power Rating : 100W Insulation Resistance : NA Flame Resistance Level : NA Usage & Applications : FLOOD LIGHT PCB Material : ALUMINIUM Board Type : Other Rated Current : 1500MA Megaampere ( MA) Hole Size : 4.05 Millimeter (mm) Cable Type : NA

Send Inquiry

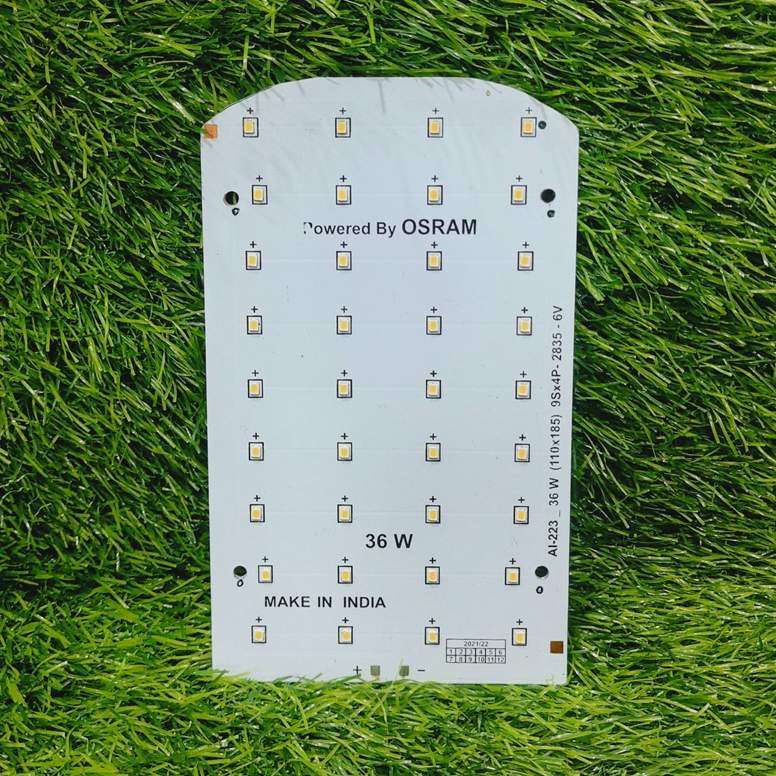

36W MC PCB Price : 199.0 INR/Piece Minimum Order Quantity : 50 Color : White Base Material : Alumunium Warranty : NA Product Type : 36W LED PCB Voltage Endurance : 600/900 Milliamperes (mA) Copper Thickness : 1.5 Millimeter (mm) Silkscreen : White Board Thickness : 1.5 Millimeter (mm) Surface Finish : Other Soldermask : White Test : Other Power Rating : 36W Insulation Resistance : NA Flame Resistance Level : NA Usage & Applications : STREET LIGHT PCB Material : ALLUMINIUM Board Type : Other Number Of Layers : Other Rated Current : 600/900 Milliampere (mA) Hole Size : 4 Millimeter (mm) Cable Type : NA
